4)Wetted part material: AISI 316 or 304 (acid-resisting stainless steel)
5)Connect ends: union or tri clamp

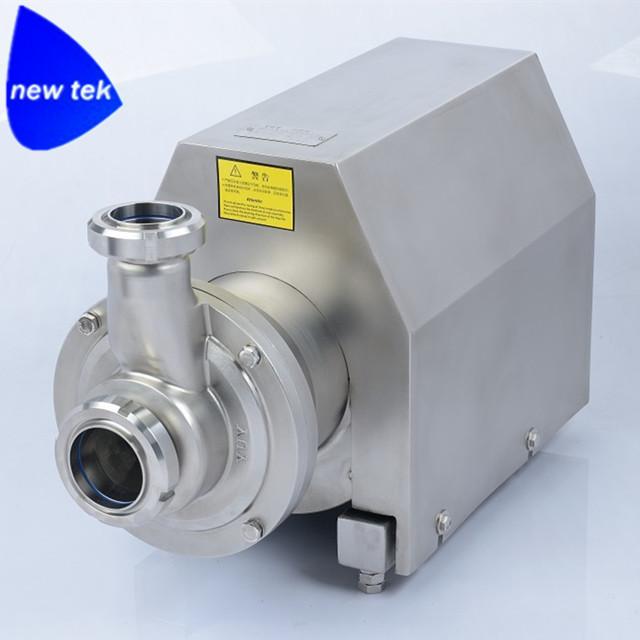

The working principle of this pump is to compress the air to achieve 0.6 suction in the pump body. Thus it is widely in the CIP system to transport the liquid in the tank and CIP pipeline so that no water is left in the pipeline system
Technical Parameter
1. Specification: 3T-180T,6m-60m , 0.55KW-75KW
2. Material: SS304 SS316L (The pump body, pump cover and impelle)
3. Impeller:
Open type impeller, there is no blind corner
close type impeller
semi-open type impeller
4. Operate condition: Sanitary centrifugal pump is close to HORIZONTAL transport of high and low level, is not the Self-priming type.
5. Surface treatment: The part contact with mdedium is Polished,
And other part is Sand Blasted
6. Max inlet pressure: 0.5MPa
7. Temperature range: -10 to Degree +140 Degree
8. Flushable mechanical sealing: Water pressure: __Max 0.1MPa
Water lift: ___0.25-0.5L/min
9. Standards: DIN \ SMS
Motor
1. Configuration of "ABB" brand three-phase AC motor is in accordance with the International Electrotechnical CommissionIEC60034. IEC60072 standard design comply with European "CE" Marking requirements
2. The Explosion-Proof motor also available, that can meet with the requirement of different Applications.
3. It has excellent electric performance, low niose and low vibration.
The protection grade is IP55, insulation grade is F.
